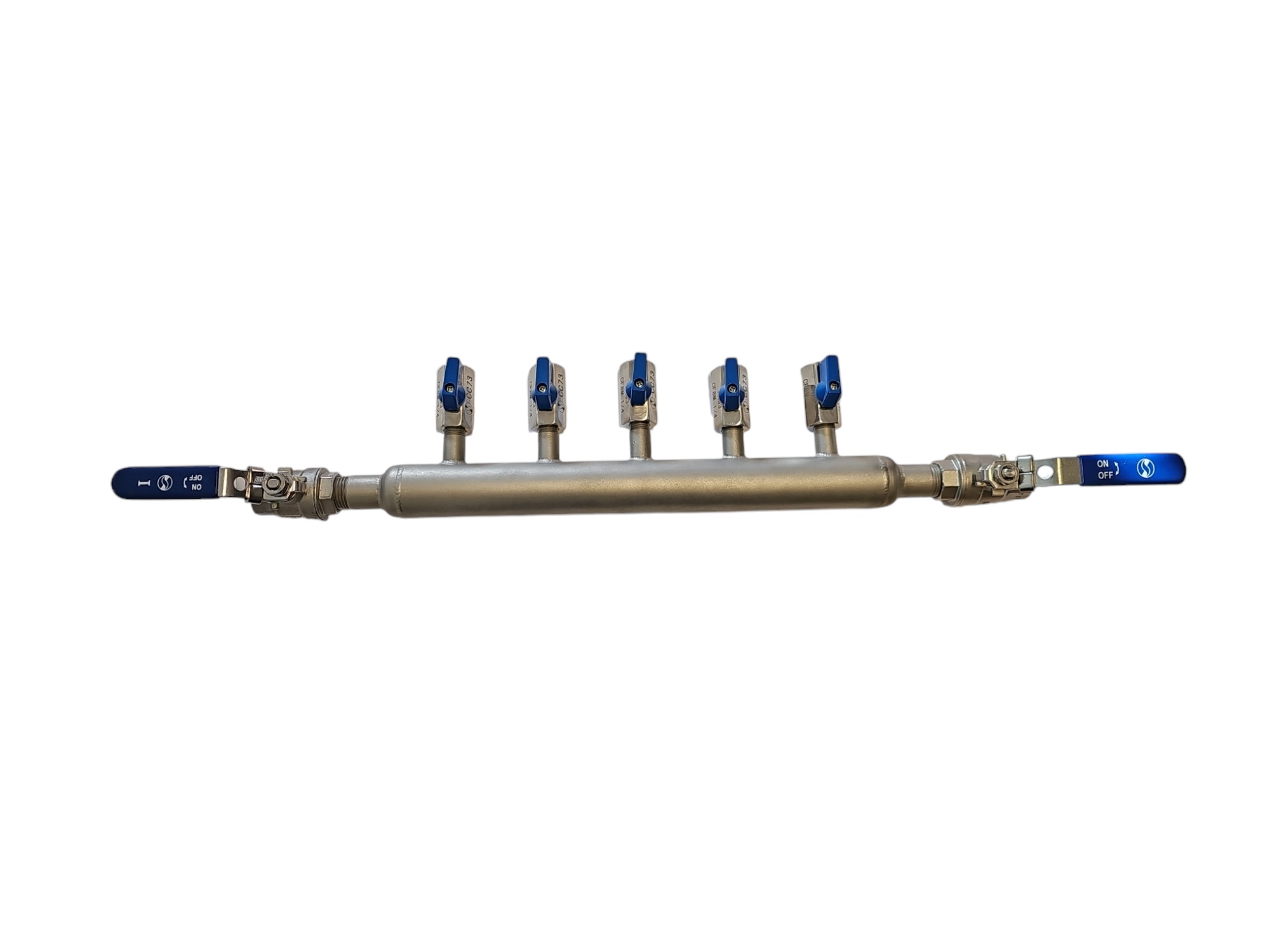

– 1x Air Header – Stainless Steel 304
– 1/2″ / DN15 diameter
– 5x 1/4″ / DN08 connections
– 1x Inlet 1/2″ / DN15
– 1x Drain 1/2″ / DN15
2x Valve GV715DN15 – PN65
– Two-piece body ball valve
– ASTM A351 CF8M stainless steel body
– female-female BSP connections
– Temperature range -20 °C to +180 °C
– Pressure up to 63 bar
– Full bore
– PTFE seat
– Anti-blowout stem
– Blue flat lever
– PTFE gland packing
– Locking device
– Stainless-steel solid ball
5x Valve GV732FFDN08 – PN65 – One piece body polished stainless steel reduced bore mini ball valve, female BSP
– One-piece body ball valve
– ASTM A351 CF8M stainless steel body
– female-female BSP connections
– Temperature range -20 °C to +180 °C
– Pressure up to 63 bar
– Reduced bore
– PTFE seat
– Anti-blowout stem
– Blue lever
– PTFE gland packing
– Stainless-steel solid AISI316 ball
Valves are mounted to the airheader and pressure tested up to 8 bar.
