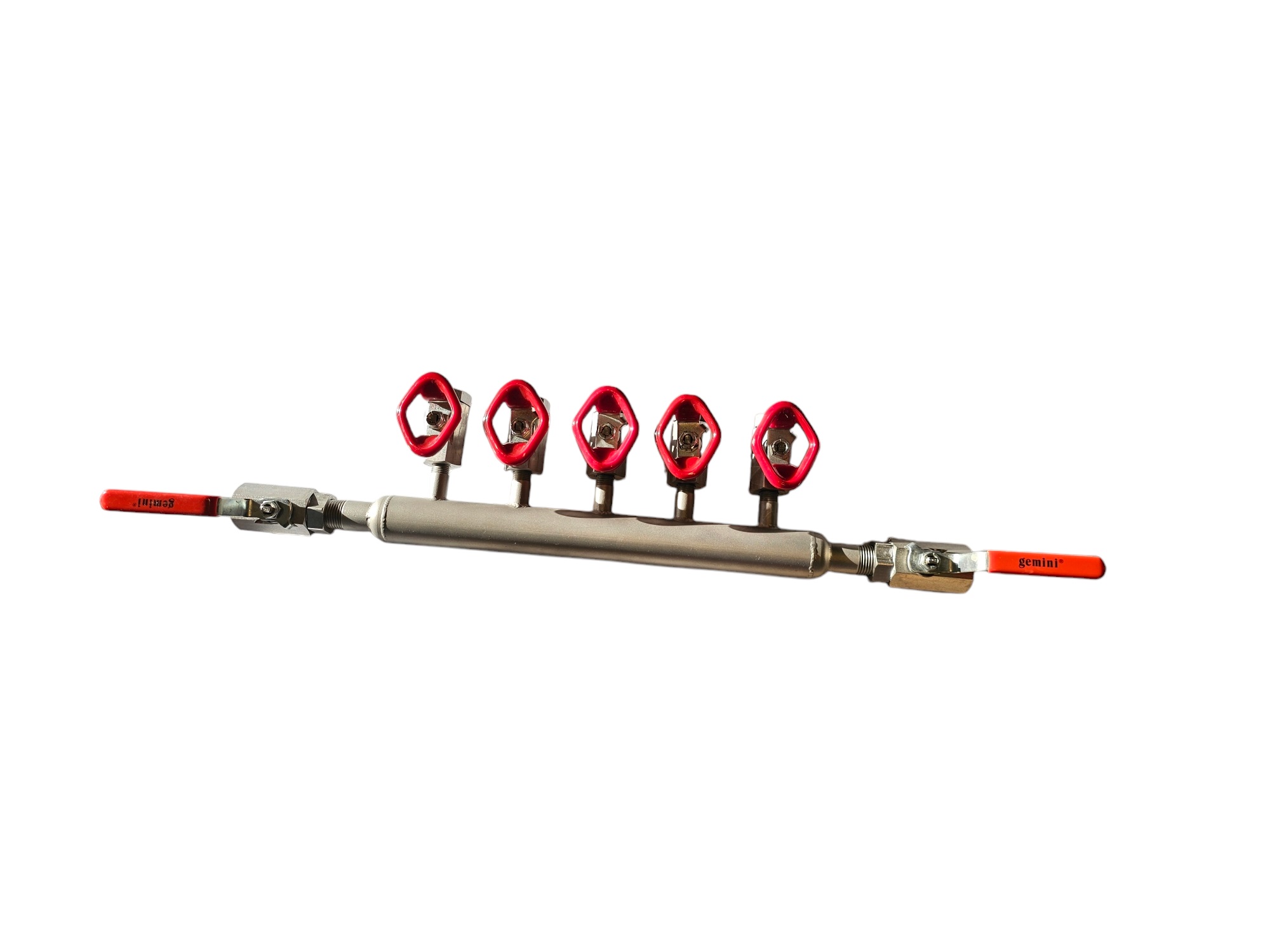

Air Header – – 1x Air Header – Stainless Steel 304
– 1/2″ / DN15 diameter
– 5x 1/4″ / DN08 connections
– 1x Inlet 1/2″ / DN15
– 1x Drain 1/2″ / DN15
2x Valve Rc-1/2-86-6-RT-6-L
– Two-piece body ball valve
– 316 Stainless Steel
– female-female BSP connections
– Temperature range -45 °C to +230 °C
– Pressure up to 49 bar
– Full bore
– Seat and stem seal: Glass Reinforced P.T.F.E. (Teflon)
– Red flat lever
– PTFE gland packing
– Stainless-steel solid ball
5x Valve Rc-1/4-86–6-RT-6-R
– Two-piece body ball valve
– 316 Stainless Steel
– female-female BSP connections
– Temperature range -45 °C to +230 °C
– Pressure up to 49 bar
– Full bore
– Seat and stem seal: Glass Reinforced P.T.F.E. (Teflon)
– Red flat lever
– PTFE gland packing
– Stainless-steel solid ball
Valves are mounted to the airheader and pressure tested up to 8 bar.
