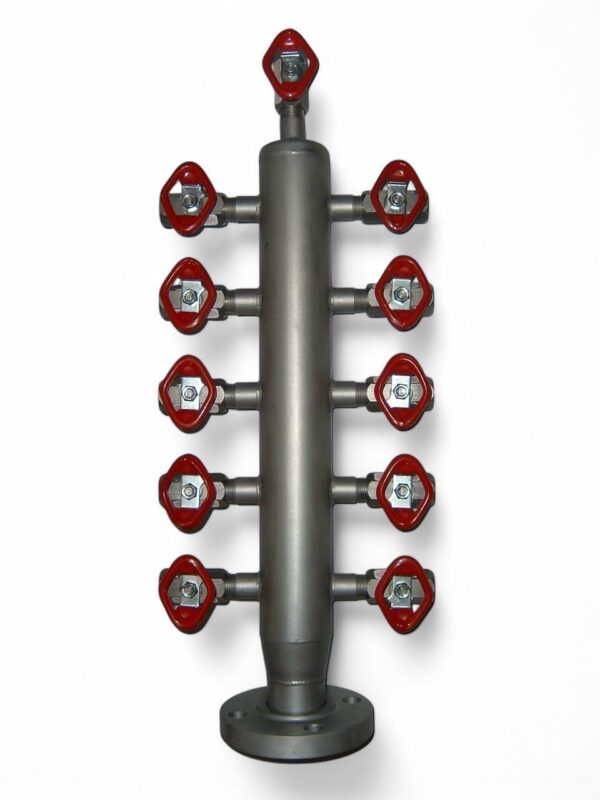

GEMINI AIR DISTRIBUTION MANIFOLD, 10-USER (BP-VERSION)

Air Header – Body Stainless Steel 316 60,3 x 2 mm (2”), pearled steel.
Both sides with 5 users, 1/2”NPT threated,
Heart to heart 80 mm
Inlet with rotating flange 150# 1” Stainless Steel 316.
Drain 1/2″NPT threated
Build and pressure tested

Ball valves (10 users, 1 drain) :
Housing: Stainless steel 316L
ball: Stainless steel 316
Seal: Reinforced PTFE
Lever: Oval lockaeble lever
Gemnini Valve code: 76-6-RT-6-RL
