Product: BSP DN025 - 1" 2-piece ball valve model 86 Brass 240AC615 - Gemini Valve B.V.

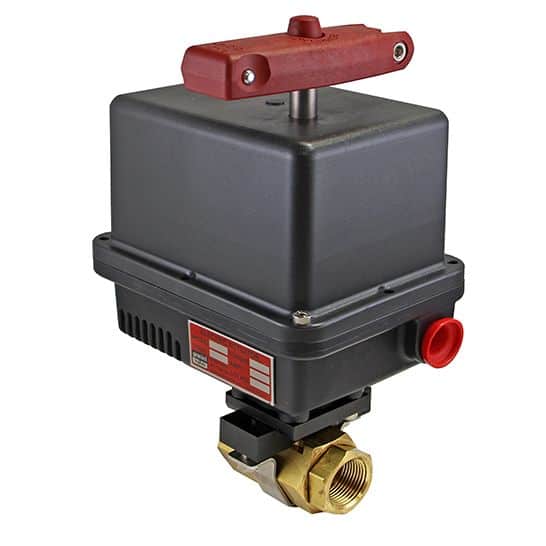

Gemini Valve electric actuator 615 – 24VDC

The Gemini Valve 24VDC Electric Actuator with a cycle (index) time of six seconds. Actuator is power on / power off utilizing cam switches to start and stop motor at close / open positions. Actuator controlled by user provided DPDT (Double Pole, Double Throw) switch or device. Temperature Rating 40°F to 150°F (4.4°C to 65.5°C). Duty Cycle 75%, Amps full load 0.5. Electrical connection: (2) Conduit ½” ports. Capacitor run motor with auto reset thermal overload protection. Permanently lubricated – maintenance free gear train. DuPont® FR50 cover with Teflon® coated cast aluminum base. Fold out manual override handle. NEMA 4X Enclosure.

SKU: 615-24VDC Category:

The Gemini Valve 24VDC Electric Actuator with a cycle (index) time of six seconds. Actuator is power on / power off utilizing cam switches to start and stop motor at close / open positions. Actuator controlled by user provided DPDT (Double Pole, Double Throw) switch or device. Temperature Rating 40°F to 150°F (4.4°C to 65.5°C). Duty Cycle 75%, Amps full load 0.5. Electrical connection: (2) Conduit ½” ports. Capacitor run motor with auto reset thermal overload protection. Permanently lubricated – maintenance free gear train. DuPont® FR50 cover with Teflon® coated cast aluminum base. Fold out manual override handle. NEMA 4X Enclosure.
