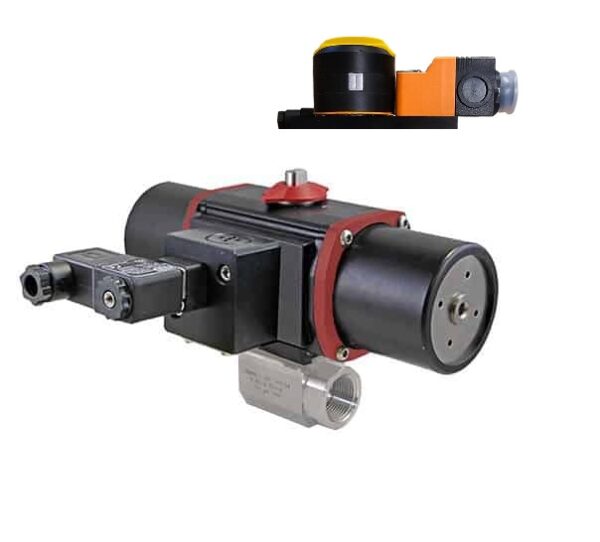

Performance Automation Series; CFM8 Stainless Steel body with 316 Stainless Steel ball and stem ball valve. Seats are glass reinforced P.T.F.E. (Teflon®), Stem Seal Viton® . Pipe connections are BSP (British Standard Pipe thread) female screwed end. Temperature Range -20°F to 350°F (-28.8°C to 176.6°C). Valve Body Pressure Rating 1,000 psi C.W.P. (Cold Working Pressure) Maximum Pressure Differential 400 psi C.W.P.
Country of Origin: USA
Valve is operated by Spring-Return (Air to Close / Spring to Open) Pneumatic Actuator which operates on 60-125 psi air supply with an cycle (index) time of 1/2 to 1 second depending on model and load. Temperature Rating -20°F to 350°F (-28.8°C to 176.6°C). Air connection is NAMUR / (2) 1/8” NPT female ports to enable direct NAMUR or remote solenoid valve piloting. Actuator body aluminum with Teflon® impregnated hard anodized surfaces. Hardware 300 Series Stainless Steel. Permanently lubricated – maintenance free. Visual Open / Close indicator.
The pneumatic actuator is piloted by our three-way direct mount NAMUR solenoid valve. Air connection is 1/8” NPT female. Air supply 60-125 psi. Coil voltage is 24VDC class F; continuous duty, 5 watts. Electrical connection DIN X Strain Relief. Protection IP65 dust tight / water resistant.
Amended with the IFM sensor IN5334 on a mounting kit
