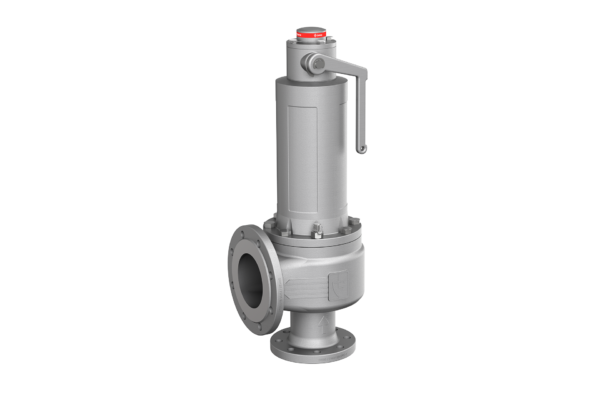

Goetze 455tGFL-40-FCD4A/FCD2A-40/65 – metal

safety valve, stainless steel
TÜV CE type tested
gastight version
for gaseous and liquid media
with lifting lever
valve dimension DN40
inlet: Flange connection cast according to
DIN EN 1092, PN40, Sealing strip form B
outlet: Flange connection cast according to
DIN EN 1092, PN16, Sealing strip form B
inlet dimension: DN40 – 1 1/2″
outlet dimension: DN65 – 2 1/2″
Seal metal
CN code 84814010
Country of origin: Germany
pressure set at 0,4 bar
1st Type Test Approval No. : 22-2094.36.D/G.0,619.
2nd Type Test Approval No.:
