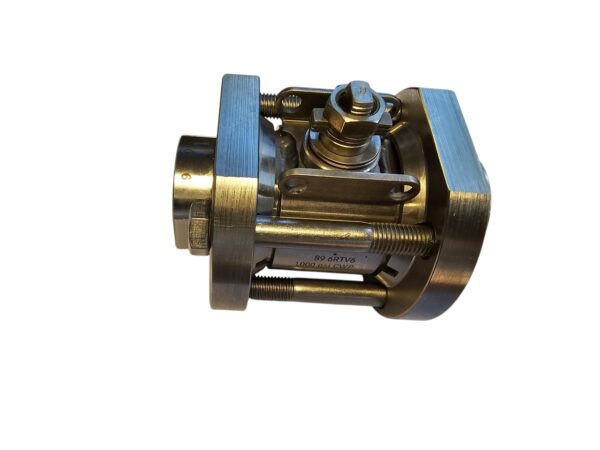

89-Type – – Serviceable Series; three piece standard port 316 stainless steel ball valve. Seats and Stem Seal are glass reinforced P.T.F.E. (Teflon®), body seals Viton®. Pipe connections are 1/2″ NPT. Temperature Range -20°F to 400°F (-28.8°C to 204.4°C). Valve Body Pressure Rating 1,000 psi C.W.P. (Cold Working Pressure), Maximum Pressure Differential 400 psi – also see Differential Pressure Temperature Chart), Saturated Steam to 150 PSI and a Vacuum rating of 20 Microns. Self-compensating stem seal design.
Valve is readye to be operated by a Gemini Valve Pneumatic or Electric Actuator
Country of Origin: USA
Connection Size:DN015 – 1/2″
Actuation:Ready for Actuator
