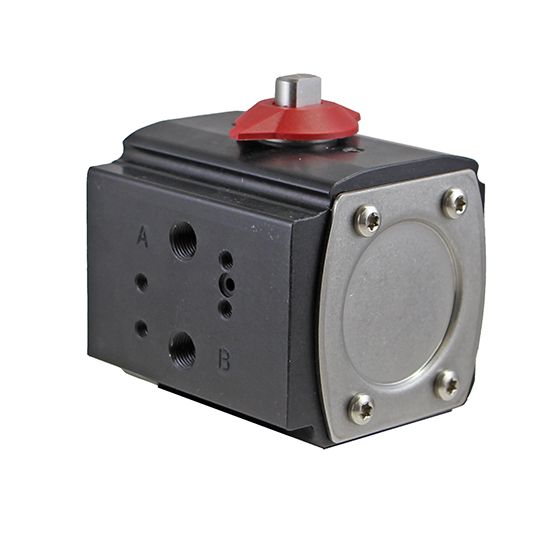

Gemini Valve double acting pneumatic actuator A512 series

Actuators-A type – – Double-Acting (Air to Open / Air to Close) Pneumatic Actuator which operates on 60-125 psi/ 4,2- 8.5 bar air supply with an cycle (index) time of 1/2 to 1 second depending on model and load. Temperature Rating -20°F to 350°F / -28.8°C to 176.6°C. Air connection is NAMUR / (2) 1/8” NPT female ports to enable direct NAMUR or remote solenoid valve piloting. Actuator body aluminum with Teflon® impregnated hard anodized surfaces. Hardware 300 Series Stainless Steel. Permanently lubricated – maintenance free. Visual Open / Close indicator. Suitable for 0.36 to 0.80 port General Industrial, Serviceable and Compression End Series Ball Valves
Country of Origin: USA.
Housing material:https://geminivalve.nl/wp-content/uploads/2024/10/Gemini_Valve-500-series-Actuator-.pdf
